Recessed linear 24" - 120V, Triac dimming, 5CCT
Image may not reflect selected features
/vendors/776/large/lnr24-cc-bk.jpg
additional image
additional image

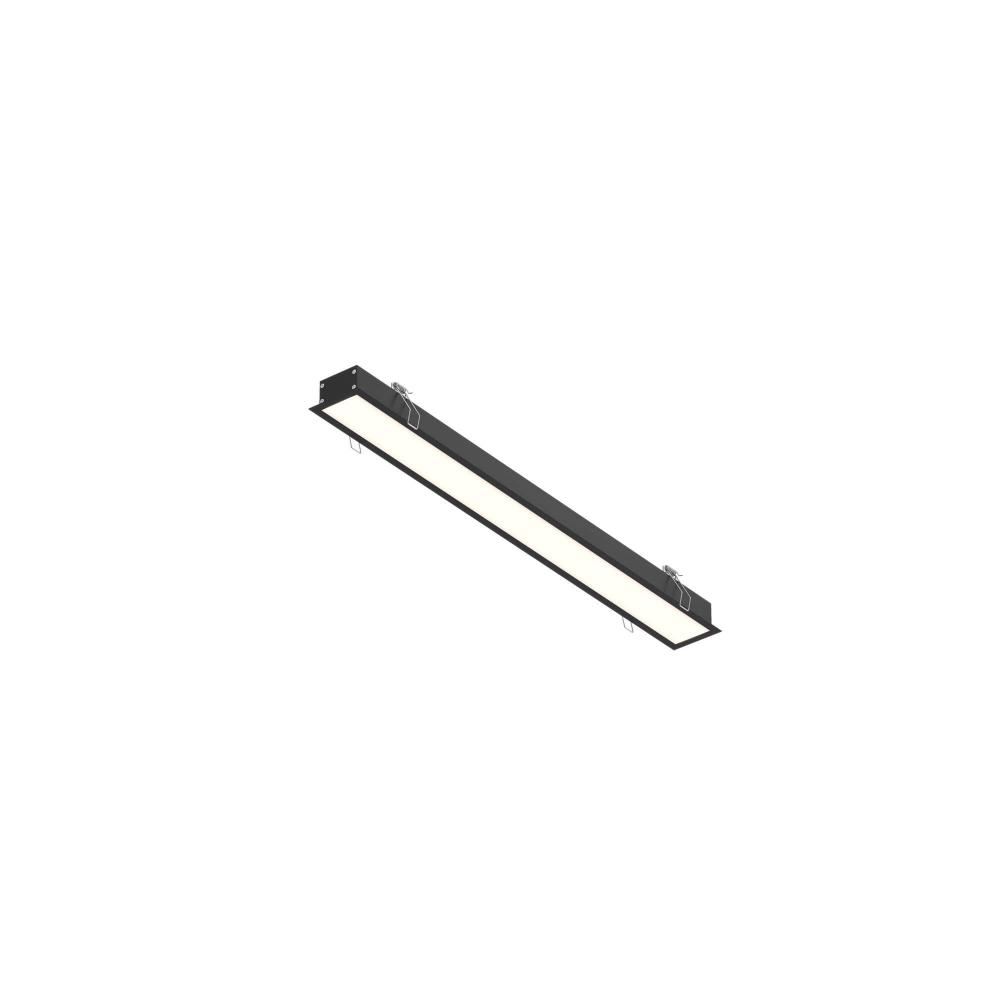

Recessed linear 24" - 120V, Triac dimming, 5CCT (LNR24-CC-BK)
The Boulevard series, an architectural recessed lighting channel that can be installed in a wide range of commercial and residential environments. Add depth to ceiling planes with a visible separation, or seamlessly daisy-chained to create dramatic effects.
Downloads
Product Specification
Item #
LNR24-CC-BK

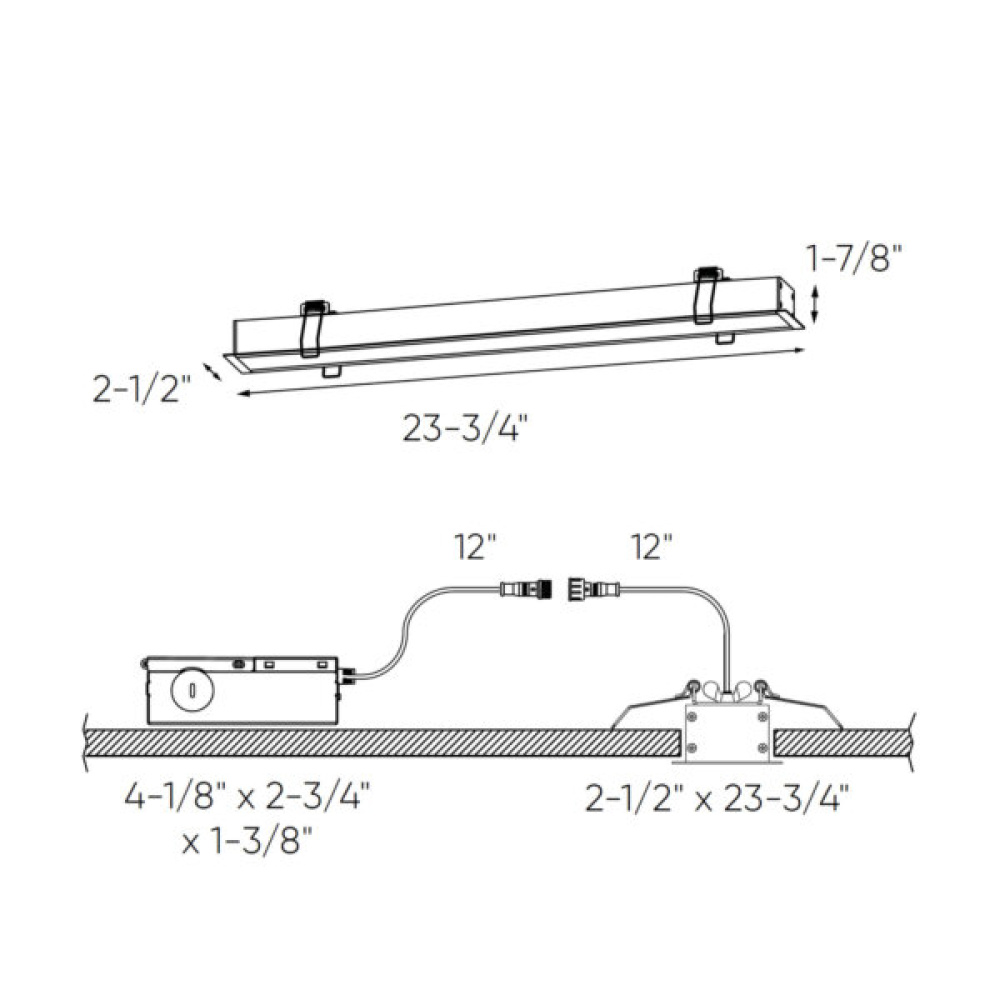

Dimensions
Height: 1.88"
Width: 2.50"
Length: 23.75"
Additional product details
Internal #
6Y3QE
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
Black
Option
Energy Star , Title 24 , Dry Rated
Category
Recessed
Subcategory
Linear
Finish
Sandy Black
Family
Boulevard
Voltage
120 V
Number of Bulbs
1 Bulbs
Bulb Dimmable
Yes
Bulb Hours
50000
Harmonized Codes
9405.11.0091
Kelvin
2700, 3000, 3500, 4000, 5000
Material
Aluminum Extrusion
Ship Carton Height
3.7
Ship Carton Length
25
Ship Carton Width
4.1
Ship Weight
2.4
Warranty
5 Years Limited
Air-Tight (ASTM E283--4)
Yes
Beam Angle
105°
Bulb CRI
90
Country of Origin
China
Delivered Lumens
1725
Dimmer Type
Triac
Energy Star
Yes
IC Certification
Yes
Indoor
Yes
IP Rating
IP20
JA8
Yes
Lens Material
Frosted PC
Location Rating
Dry Rated
Max Wattage
20 W
Maximum Working Temperature
40°C
Minimum Working Temperature
-20°C
Safety Rating
ETL Approved
Shipping Master Height
12
Shipping Master Length
25
Shipping Master Quantity
6
Shipping Master Weight
20
Shipping Master Width
8.7
Title 24
Yes
Wiring
Hardwired


Other Details:
  • 108° beam spread
  • Every fixture includes a junction box with integrated dimmable driver
  • Ideal operating temperature: -20° to 40° C
  • Switch-selectable CCT: 2700K/ 3000 K/3500 K/4000 K/5000 K
Finish
