Recessed linear 48" - 120-277-347V, 0-10V dimming, 5CCT
Image may not reflect selected features
/vendors/776/large/lnr48-cc-wh.jpg
additional image
additional image

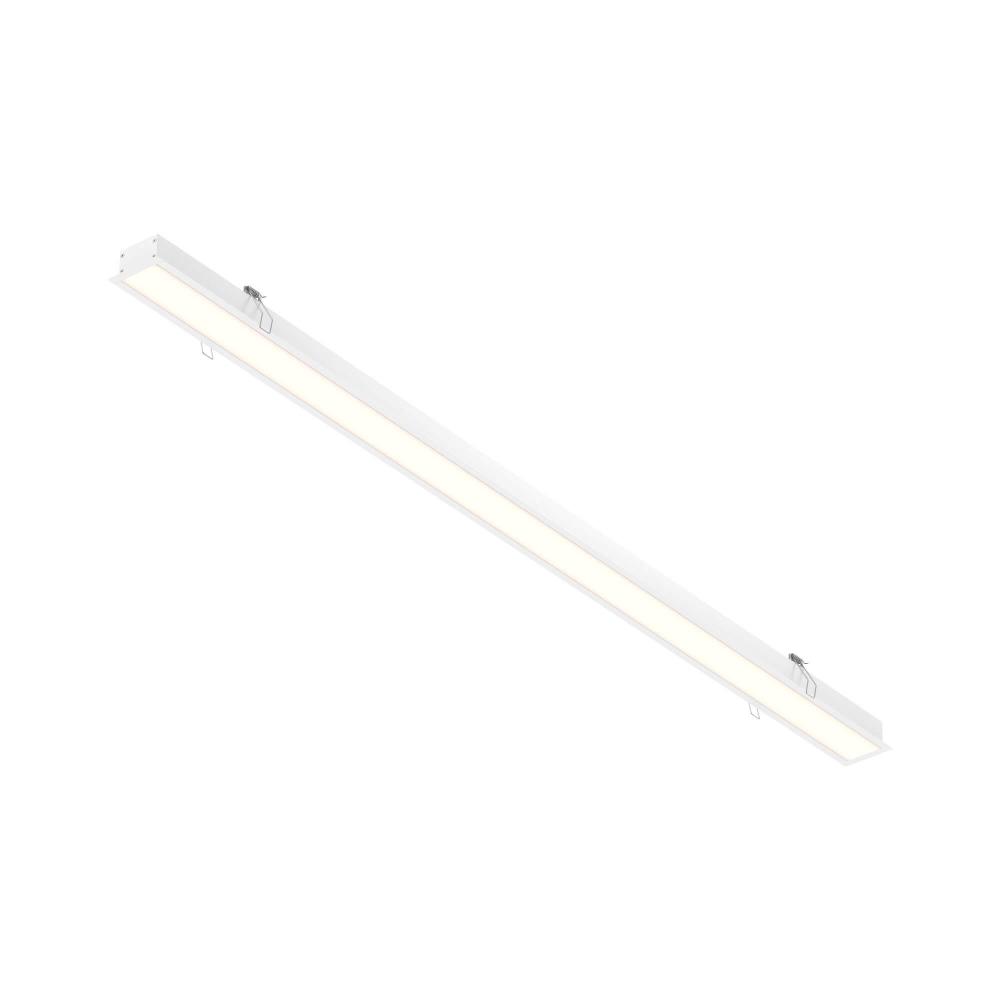

Recessed linear 48" - 120-277-347V, 0-10V dimming, 5CCT (LNR48-CC-V-WH)
The Boulevard series, an architectural recessed lighting channel that can be installed in a wide range of commercial and residential environments. Add depth to ceiling planes with a visible separation, or seamlessly daisy-chained to create dramatic effects.
Downloads
Product Specification
Item #
LNR48-CC-V-WH
Dimensions
Height: 1.88"
Width: 2.50"
Length: 47.75"
Additional product details
Internal #
6Y1RD
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Option
Energy Star , Title 24 , Outdoor , Wet Rated , Dry Rated
Voltage
100-120
Lumens
1101-1600
Kelvin
2501-3000
Location Rating
Wet Rated
Wattage
40w
Category
Recessed
Subcategory
Linear
Finish
White
Family
Boulevard
Voltage
120-277-347 V
Number of Bulbs
1 Bulbs
Bulb Dimmable
Yes
Bulb Hours
50000
Harmonized Codes
9405.11.0091
Kelvin
2700, 3000, 3500, 4000, 5000
Material
Aluminum Extrusion
Ship Carton Height
3.7
Ship Carton Length
49
Ship Carton Width
4.1
Ship Weight
3.5
Warranty
5 Years Limited
Air-Tight (ASTM E283--4)
Yes
Beam Angle
108°
Bulb CRI
90
Country of Origin
China
Delivered Lumens
3760
Dimmer Type
0-10V
Energy Star
Yes
IC Certification
Yes
Indoor
Yes
IP Rating
IP20
JA8
Yes
Lens Material
Frosted PC
Location Rating
Dry Rated
Max Wattage
40 W
Maximum Working Temperature
40°C
Minimum Working Temperature
-20°C
Safety Rating
ETL Approved
Shipping Master Height
12
Shipping Master Length
49
Shipping Master Quantity
6
Shipping Master Weight
24
Shipping Master Width
8.7
Title 24
Yes
Wiring
Hardwired


Other Details:
  • 108° beam spread
  • Every fixture includes a junction box with integrated dimmable driver
  • Ideal operating temperature: -20° to 40° C
  • Switch-selectable CCT: 2700K/ 3000 K/3500 K/4000 K/5000 K
Call for Price
Qty:
BASE PRICE:
$
250
00
/ / 1
($250.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer availability unknown.
